# Hype


## About

A simple interface in flask and python3, to mange and get a status of my vm and lxc containers.

Using the python3-lxc and libvirt to communcate with lxc/kvm api.

Creation need also the lxc-templates.

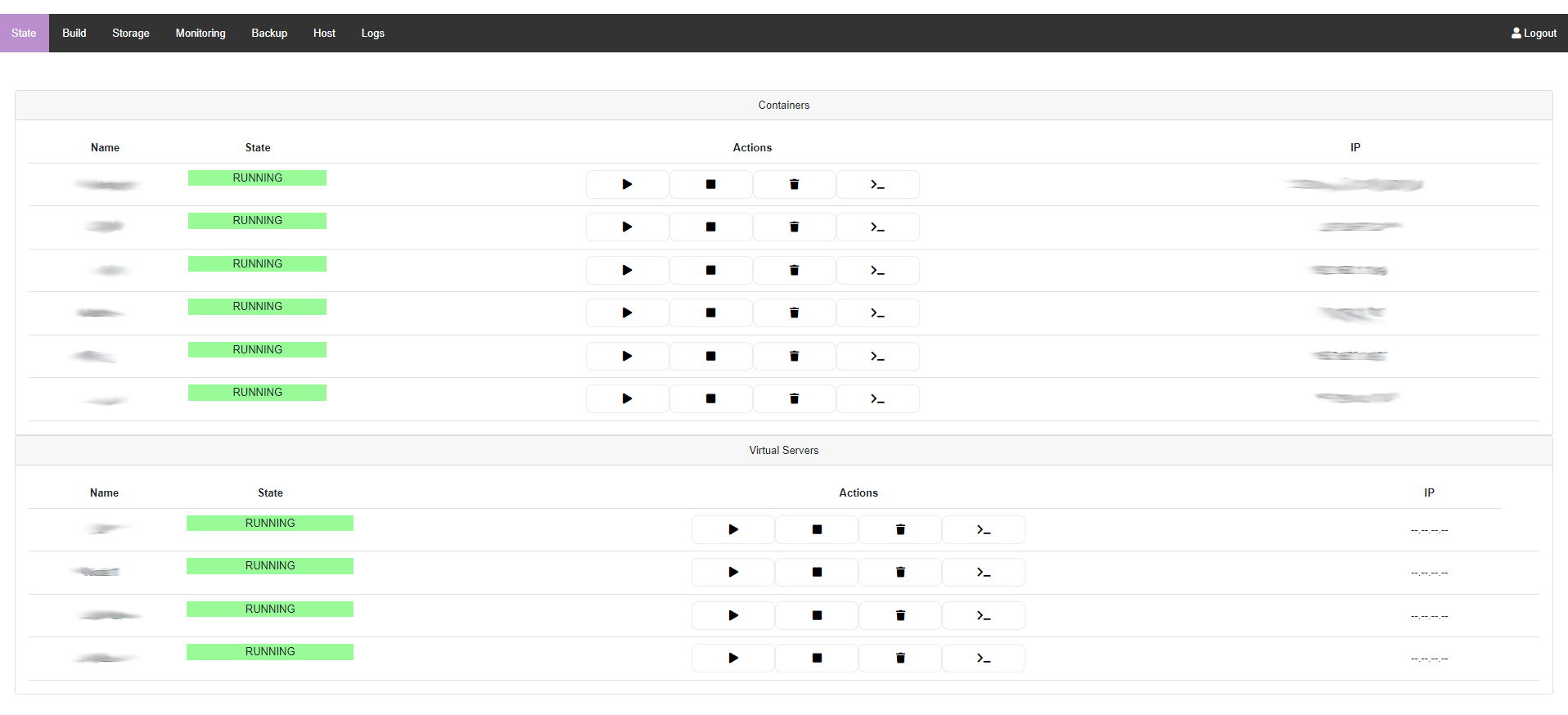

![ScreenShot](./tools/images/screenshot.png)
![ScreenShot2](./tools/images/Login.png)


[![MIT License](https://img.shields.io/badge/License-MIT-green.svg)](https://choosealicense.com/licenses/mit/) [![GPLv3 License](https://img.shields.io/badge/License-GPL%20v3-yellow.svg)](https://opensource.org/licenses/) [![AGPL License](https://img.shields.io/badge/license-AGPL-blue.svg)](http://www.gnu.org/licenses/agpl-3.0)


## Login


Be carefull !!
By default, the authentification is PAM.
This PAM auth is based on the library [simplepam](https://github.com/leonnnn/python3-simplepam).
This means that by default, the allowed users, are the user in the server.


## Install

Some requirements are needed :
```sh

Ubuntu/Debian:

Using basic package in apt debian repositories.
The script will install software dependencies, create a virtual environnement "hype_env" and download all Python dependancies in ths virtual env.

  python3 -m venv hype_env  --system-site-packages

Just launch the Debian install script :

 In root or sudo user :
  root$ chmod +x Debian_install.sh
  root$ sh ./Debian_install.sh

```
## Network

By default, Libvirt use a default network setting, creating a private LAN:

```ss
<network>
  <name>default</name>
  <bridge name='virbr0'/>
  <forward/>
  <ip address='192.168.122.1' netmask='255.255.255.0'>
    <dhcp>
      <range start='192.168.122.2' end='192.168.122.254'/>
    </dhcp>
  </ip>
</network>

```
If you want the server to be linked to you LAN, create a Bridge interface.
For example in Debian (here eth0 is the main interface)

In /etc/network/interface :

```sh

allow-hotplug eth0

auto br0
iface br0 inet static
bridge_ports eth0
bridge_fd 0
bridge_maxwait 0
address 192.168.XX.XX
netmask 255.255.255.0
gateway	192.168.XX.XX


```

Restart the network manager and check if you can see your interface called br0.

You have then, to create a bridge interface in Libvirt:

```sh

<network>
  <name>bridged</name>
  <forward mode="bridge" />
  <bridge name="br0" />
</network>


```
Then enable anc activate this interface :

```sh
virsh net-define bridge.xml
virsh net-start bridged
virsh net-autostart bridged
```

Don't forget to map this network on Virtual Server Creation.

## Start

Debian install script, will create a virtual environement.
To start in this venv :

```sh

 #. hype_env/bin/activate
 (hype_env)#python3 hype.py


Ensure that you are in the Virtal env, else you will not be able to user required python libs.
```

Then go on your browser :

```sh
 http://{{IP}}:5005

```

## WebTerminal

The Containers are accessible thought a Web Terminal.

It use the librairy [PyXtermJS](https://github.com/cs01/pyxtermjs)

The install script will change :
	- host listening from 127.0.0.1 to 0.0.0.0

The install script will keep the previous files *.save.
just move the .save to original name to rollback.


## Port configuration

 - By default, the script run :
	- 5005 for the website
	- 5000 for the Terminal interface
 - Please check your own configuration (firewall, proxy, reverse-proxy)

## Roadmap

- [x]  Update Changelog
- [x] Add Console
- [x] Add VM
- [x] Add Storage View
- [x] Add ISO (upload/use)
- [x] Add VM creation
- [x] Add forced stop on VM (when shutdown is not enought)
- [x] Add Snapshot Management:
    - [x] Creation
    - [x] Restore
    - [x] Delete
- [x] Add Info:
    - [x] lxc/vm
    - [x] system ressources (?)
- [x] Storage :
    - [x] improve Pool location
    - [x] Correct Pool issue in case of manual deletion
- [x] Monitoring :
    - [x] improve CPU and RAM
- [x] Network :
    - [x] Correct IPv4 issue for VM
- [x] Interface :
    - [x] Adding Dashboard
- [x] Drivers :
    - [x] Check CD Driver and manage it (add/remove/change)

To do :

- [ ] Console:
    - [ ] Improve Xterm integration to avoid many ports
- [ ] Network :
    - [ ] Add IPv6 address
    - [ ] Add Interfaces

## Sources / Resources

LIBVIRT (KVM/QEMU)
https://libvirt.org/

PYXTERMJS : virtual Terminal
https://github.com/cs01/pyxtermjs

LXC
https://linuxcontainers.org/lxc/
https://github.com/lxc/python3-lxc
